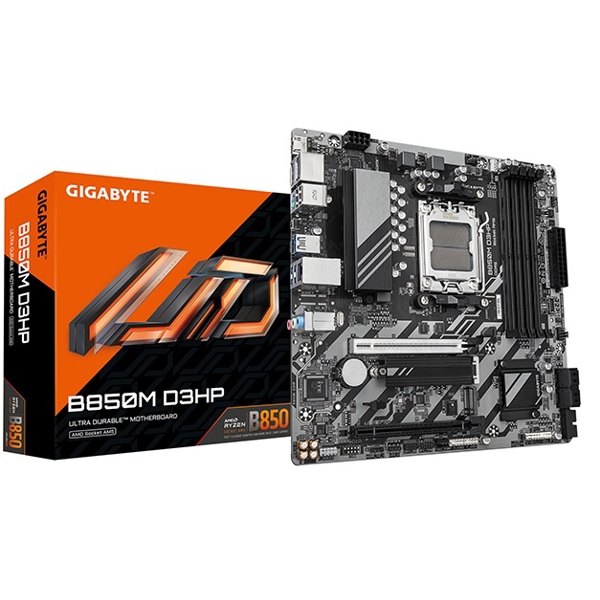

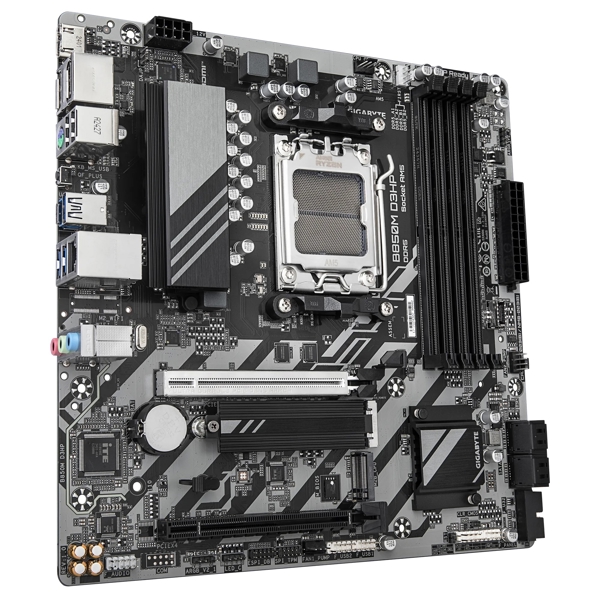

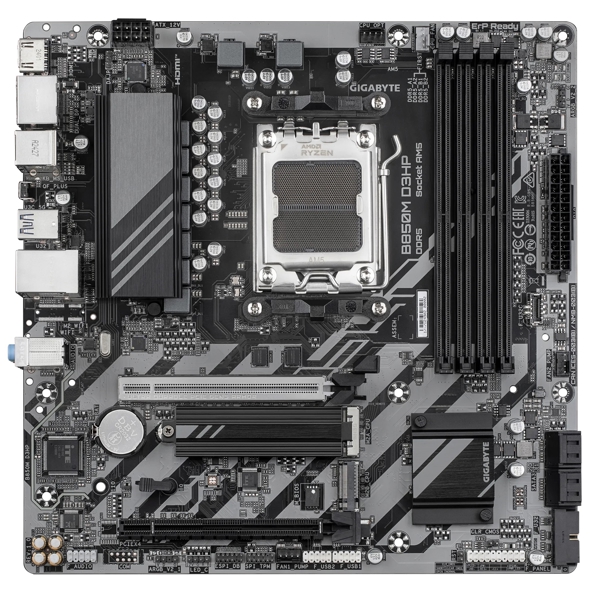

- Brand: Gigabyte
- Model: B850M D3HP
- Product Type: Motherboard
- Form Factor: Micro ATX
- Socket AM5
- Chipset: AMD B850
- Compatible Processors
- AMD Socket AM5, Support: AMD Ryzen 7000 / Ryzen 8000 / Ryz
- Memory Type: DDR5
- Maximum Frequency: 8200 MHz
- 4 x DDR5 DIMM sockets, supporting up to 256 GB
- (64 GB single DIMM capacity) of system memory
- Dual-channel memory architecture
- Slot Type: DIMM
- PCI Express Version: PCI Express 4.0, PCI Express 5.0
- Expansion Slots
- 1 x PCI Express x16 slot, supports PCIe 3.0 and runs at x4
- Internal I/O Ports
- 1 x front panel audio header
- 1 x front panel header
- 1 x CPU fan header
- 1 x system fan header
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x M.2 Socket 3 connectors
- 1 x Clear CMOS jumper
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 2 x USB 2.0/1.1 headers
- 1 x USB Type-C header, with USB 3.2 Gen 1 support
- 1 x reset jumper
- 1 x system fan/water cooling pump header
- Internal I/O ports
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TP,
- 2 x addressable RGB Gen2 LED strip headers
- Rear I/O ports
- 1 x HDMI
- 1 x DisplayPort
- 1 x Q-Flash Plus button
- 2 x USB 2.0/1.1 ports
- 3 x audio jacks
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C port, with USB 3.2 Gen 1 support
- 1 x PS/2 keyboard/mouse port
- Operating System
- Supported Windows 10 64-bit, Windows 11 64-bit
- Size: 24.4 x 24.4 cm
- Color: Black
