- Brand: Gigabyte
- Model: Z790 EAGLE AX
- Product Type: Motherboard
- Form Factor: ATX
- Socket: 1700
- Chipset: Intel Z790
- Compatible Processors
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core,
- Pentium Gold and Celeron® Processors
- Maximum Memory: 256GB
- Memory Type: DDR5
- Maximum Frequency: 7600 MHz
- Number of Slots: 4
- Slot Type: DIMM
- Expansion Slots
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- Version PCI Express
- PCI Express 5.0, PCI Express 3.0
- Internal I/O ports
- 1 x USB 3.2 Gen 1 header
- 1 x front panel header
- 1 x CPU fan header
- 1 x reset button
- 4 x SATA 6Gb/s connectors
- 2 x Thunderbolt add-in card connectors
- 2 x USB 2.0/1.1 headers
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x 8-pin ATX 12V power connectors
- 3 x M.2 Socket 3 connectors
- 1 x 24-pin ATX main power connector
- 1 x system fan/water cooling pump header
- 1 x Q-Flash Plus button
- 2 x addressable LED strip headers
- 3 x system fan headers
- 1 x S/PDIF Out header
- 1 x USB Type-C header, with USB 3.2 Gen 1 support,
- 1 x front panel audio header
- Internal I/O Ports
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI /
- GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x CPU fan/water cooling pump header

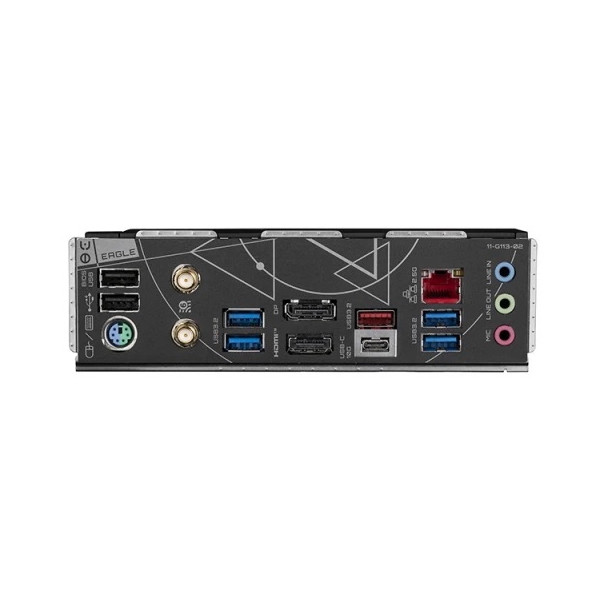

- Rear I/O Ports
- 1 x PS/2 keyboard/mouse port
- 1 x DisplayPort
- 2 x SMA antenna connectors (1T1R)
- 2 x USB 2.0/1.1 ports
- 4 x USB 3.2 Gen 1 ports
- 1 x HDMI
- 3 x audio jacks
- 1 x LAN (RJ-45)
- 1 x USB Type-C port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- Operating System: Windows 11 64-bit, Windows 10 64-bit
- Dimensions: 30.5 x 24.4 cm
