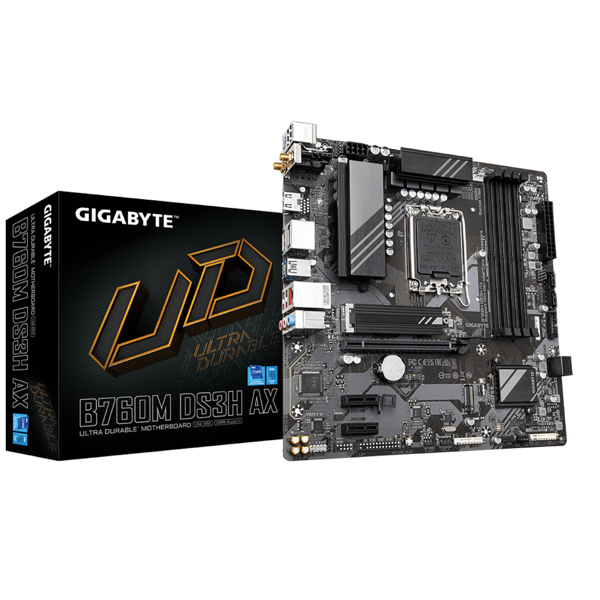

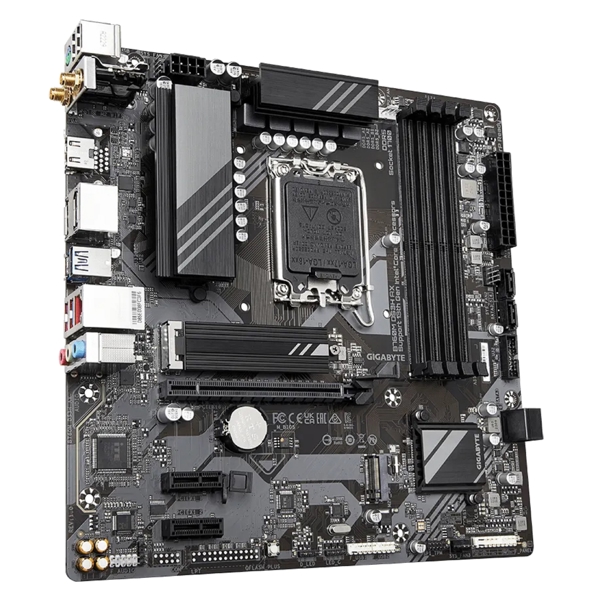

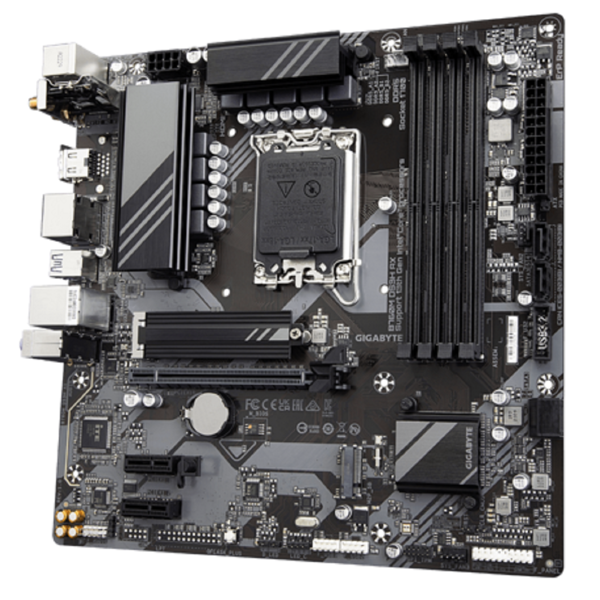

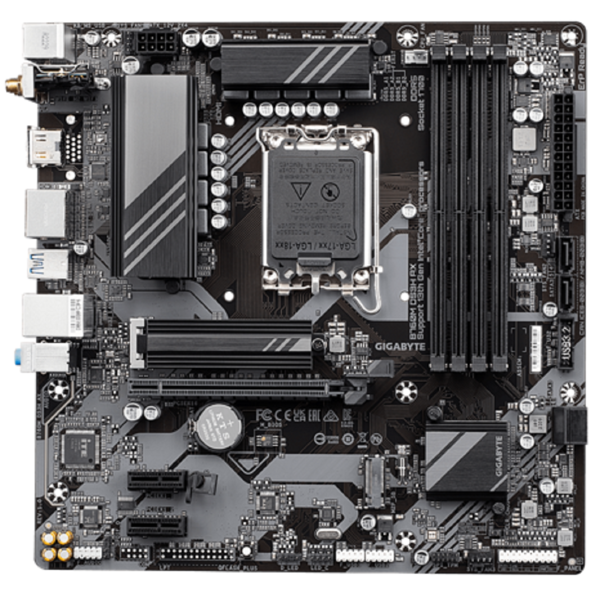

- Brand: Gigabyte
- Model: B760M_DS3H_AX
- Product Type: Motherboard
- Processor
- LGA1700 Socket: Supports 14th, 13th, and 12th Generation Intel
- Core, Pentium® Gold, and Celeron Processors
- Chipset
- Intel B760 Express Chipset
- Memory
- Supports DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.)
- /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.)
- / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s Memory Module
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM capacity) of system memory
- Audio
- Realtek Audio Codec
- High Definition Audio: 2/4/5.1/7.1-channel
- LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication Module
- AMD Wi-Fi 6E RZ608 (MT7921K) (for PCB version 1.0)
- Intel Wi-Fi 6E AX210 (for PCB version 1.1)
- Intel Wi-Fi 6E AX211 (for PCB version 1.2)
- Realtek Wi-Fi 6E RTL8852CE (for PCB version 1.3)
- Memory Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
- Operating system
- Windows 11 64-bit support
- Windows 10 64-bit support
- Form factor
- Micro ATX form factor
- 24.4 cm x 24.4 cm
- Color: Black
