- Brand: Gigabyte
- Model: GP-UD1000GM PG5
- Product Type: Power Supply
- Type: Intel Form Factor ATX 12V
- PFC: Active PFC (>0.9 typical)
- Input Voltage: 100-240VAC (Full Range)
- Input Current: 15-6.5A
- Input Frequency: 60-50Hz
- Output Power: 1000W

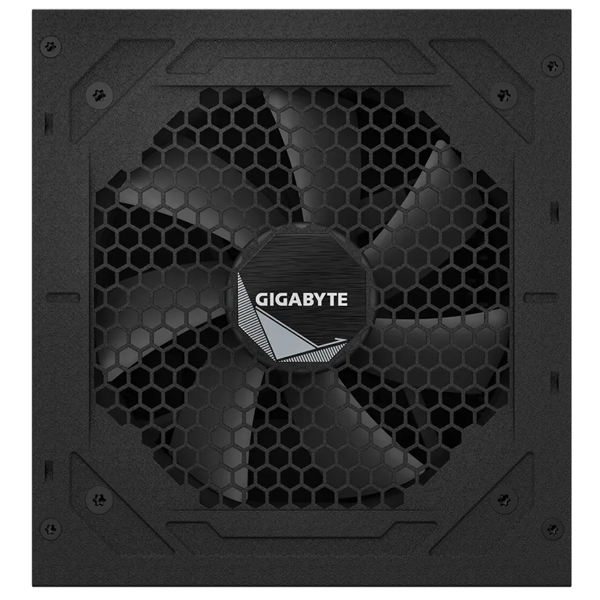

- Fan Type: 120mm Hydraulic Bearing
- 80 PLUS: Gold
- Efficiency: 90% Typical Load
- MTBF: >100,000 Hours
- Protection: OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal: 100-150ms
- Standby Time: >16ms
- Pin Type: Flat, All Black
- Connectors
- ATX/MB 20+4 pin x 1: 610mm*1
- CPU/EPS 4+4 pin x 2: 600mm+200mm*1
- PCI-e 16 pin x : 700mm*1
- PCI-e 6+2 pin x 4: 600mm+150mm*2
- SATA x 8: 600mm+150mm+150mm*2
- 4 pin peripheral x 3+4 pin floppy disk x 1: 500mm+120mm+120mm+150mm*1
- Dimensions: 150 x 140 x 86mm
- Color: Black
Power | 1000W |
80 PLUS efficiency | Gold |
Color | Black |
