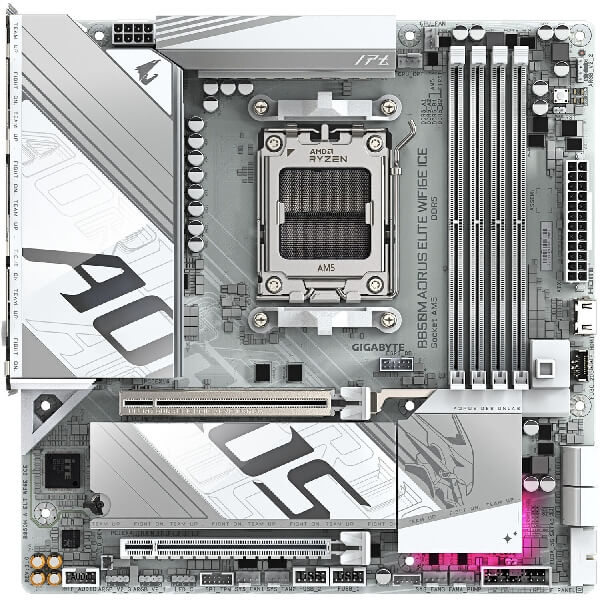

- Brand: Gigabyte
- Model: B850M_A_ELT_WF6E_ICE
- Product Type: Motherboard
- Form Factor: Micro ATX
- Processor: For AMD Processors
- Socket Type: AM5
- Processor Compatibility: AMD Ryzen 9000/8000/7000
- Chipset
- Northbridge (Chipset): AMD B850
- BIOS: UEFI
- UEFI BIOS: Yes
- RAM
- Socket Type: DDR5
- DDR5: 4 Slots
- Maximum Clock Frequency: 8200 MHz
- Maximum Memory Capacity: 256 GB
- Video Options
- Graphics Interface
- PCI-E x4 4.0
- PCI-E x16 5.0
- PCI-E x8 4.0
- HDMI Output
- DisplayPort
- Audio Options
- Audio Chip: Realtek ALC1220
- Sound: 7.1, 5.1, 2, 4
- S/P-DIF: Yes
- Drive connectivity
- Connection interface
- SATA 3
- M.2
- Software
- RAID support: Yes
- SATA3 (6 Gbit/s): 4 ports
- Network interfaces
- Wi-Fi module: Yes, 6E RTL8852CE
- Bluetooth: Yes, 5.3
- Connection connectors
- USB 2.0: 8 pcs (CPU+USB 2.0 hub: 4 on the back panel; chipset: 4 available via internal USB connectors)
- USB 3.2 Gen 1: 7 /(Chipset+USB 3.2 Gen 1 hub: 4 on the back panel;
- chipset: 1 on the back panel, 2 ports available via internal USB connector)
- USB 3.2 Gen 2: 3 /(CPU: 1xType-C on the back panel, 2xType-A (red) on the back panel)
- M.2 Connector: 2
- Features
- system fan headers
- clear CMOS jumper
- iTE I/O Controller Chip
- reset button
- Front panel audio connector
- RGB LED strip header
- Support for Windows 10 64-bit
- SMA antenna connectors (2T2R)
- Q-Flash Plus button
- Smart Backup feature
- Q-Flash Utility
- Front Panel Header
- TPM Header
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan failure warning
- Fan speed control
- system fan/water cooling pump header
- Q-Flash Plus Utility
- Support for Windows 11 64-bit
- Internet Security
- LAN bandwidth management software
- Dimensions (Height x Width): 244 x 244 mm
