- Brand: Gigabyte
- Model: B850M_DS3H
- Product Type: Motherboard
- Form Factor: micro ATX
- Processor: For AMD processors
- Socket Type: AM5
- Chipset
- Northbridge (chipset): AMD B850
- BIOS: UEFI
- UEFI BIOS: Yes
- RAM
- Socket Type: DDR5
- DDR5: 4 slots
- Maximum Clock Frequency: 8200 MHz
- Maximum Memory Capacity: 256 GB
- Video Settings
- Graphics Interface
- PCI-E x4 4.0
- PCI-E x16 5.0
- PCI-E x8 4.0
- HDMI Output
- DisplayPort
- Drive Connections
- Connection Interface
- SATA 3
- M.2
- Software RAID Support: Yes
- SATA3 (6 Gbit/s): 4 ports
- Network Interfaces
- LAN (RJ-45): 100/1000/2500 Mbps
- Number of LAN ports: 1
- LAN controller model: Realtek 2.5GbE

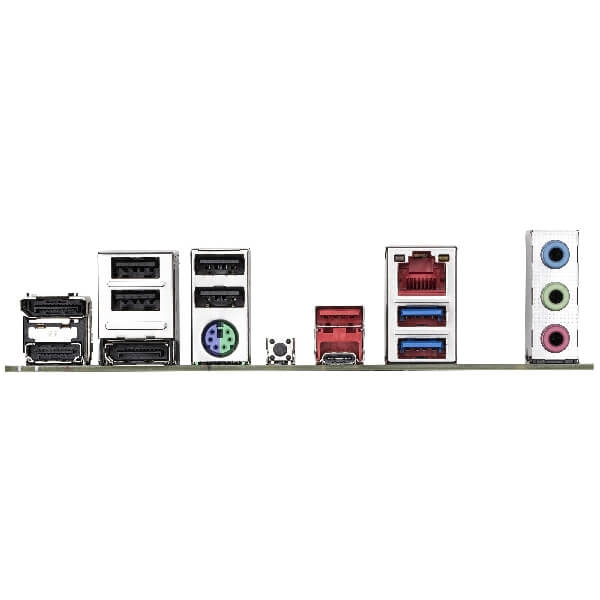

- Connection connectors
- USB 2.0: 8 pcs (CPU: 4 on the back panel; Chipset: 4, accessible via internal USB connectors)
- PS/2: 1 pc (keyboard/mouse)
- USB 3.2 Gen 1: 4 /(Chipset:: 2 on the back panel, 2 ports accessible via internal USB connector)
- USB 3.2 Gen 2: 3 /(CPU: 1xType-C on the back panel, 1xType-A (red) on the
- back panel; Chipset: 1xType-C, accessible via internal USB connector)
- M.2 connector: 2
- Additional
- CPU fan header
- system fan headers
- clear CMOS jumper
- iTE I/O Controller Chip
- reset button
- Support for Windows 10 64-bit
- Q-Flash Plus button
- RGB LED Headers
- Smart Backup feature
- Q-Flash Utility
- TPM Header
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan failure warning
- Fan speed control
- system fan/water cooling pump header
- Q-Flash Plus Utility
- Water cooling flow rate detection
- Support for Windows 11 64-bit
- Internet Security
- LAN bandwidth management software
- Main power connector: 24+8-pin
- Dimensions (height x width): 244 x 244 mm
