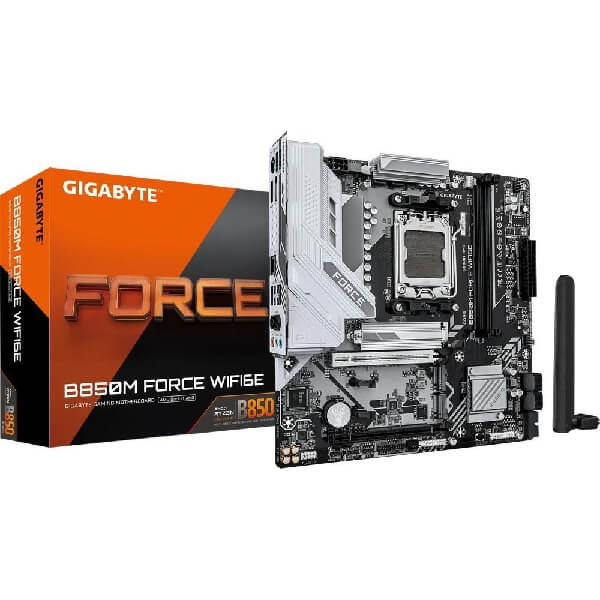

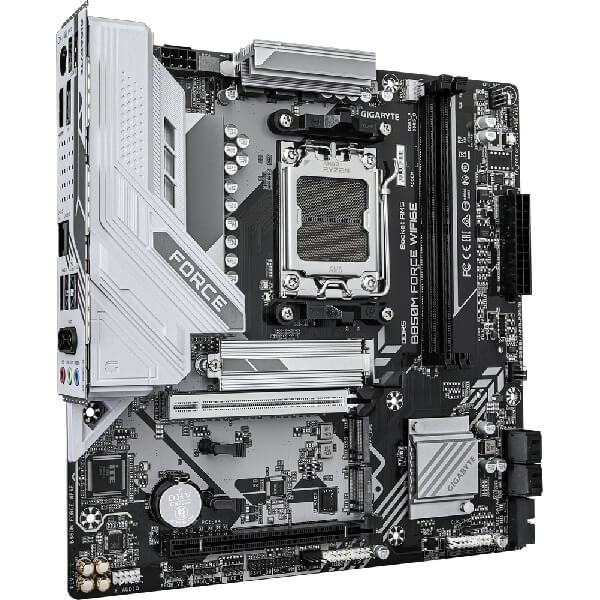

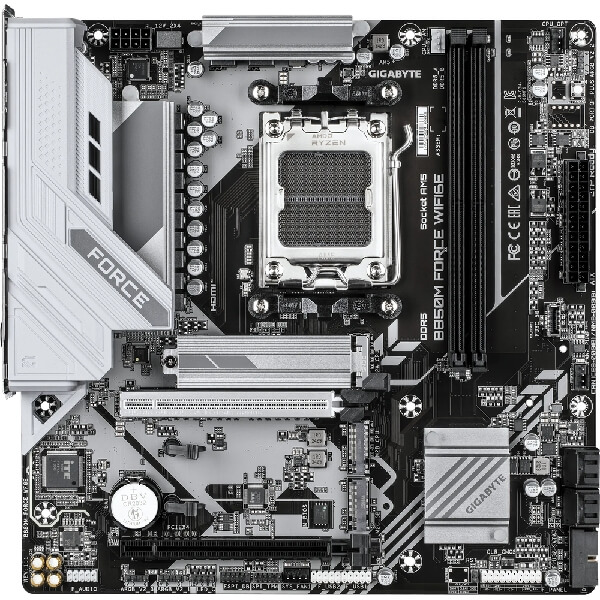

- Brand: Gigabyte
- Model: B850M_FORCE_WF6E
- Product Type: Motherboard
- Form Factor: micro ATX
- Processor: For AMD processors
- Socket type AM5
- Processor compatibility AMD Ryzen 9000/8000/7000
- Chipset
- Northbridge (chipset): AMD B850
- UEFI BIOS: Yes
- RAM
- Connector type: DDR5
- DDR5: 2 slots
- Maximum clock speed: 9600 MHz
- Maximum memory capacity: 128 GB
- XMP support: Yes
- Video settings
- Graphics interface
- PCI-E x16 5.0
- HDMI output
- DisplayPort
- Audio settings
- Audio chip: Realtek
- Sound: 7.1, 5.1, 2, 4
- Drive connection
- Connection interface
- SATA 3
- M.2
- Software RAID Support: Yes (0/1/5/10 for NVMe SSDs; 0/1/10 for SATA storage devices)
- SATA3 (6 Gbit/s): 4 ports
- Network interfaces
- LAN (RJ-45): 100/1000/2500 Mbps
- Number of LAN ports: 1
- LAN controller model: Realtek 2.5GbE
- Wi-Fi: Yes, 6E MT7902
- Bluetooth: Yes, 5.3

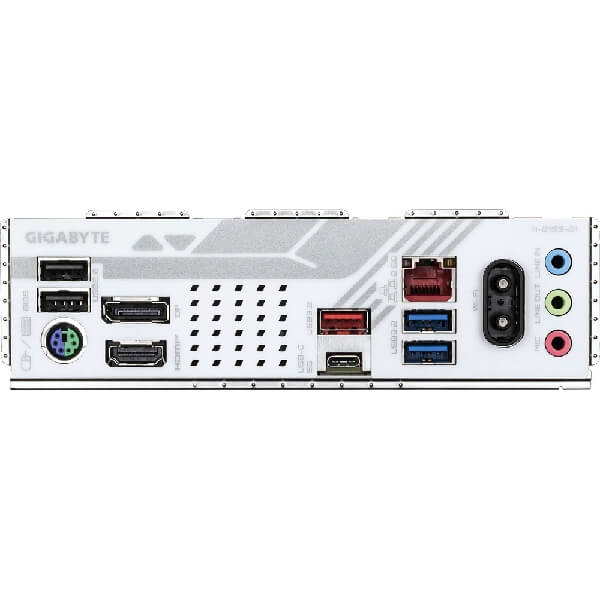

- Connection connectors
- USB 2.0: 6 pcs (CPU: 1 on the back panel; Chipset: 1 on the back panel,
- 4 ports available via internal USB connectors)
- PS/2: 1 pc (keyboard/mouse)
- USB 3.2 Gen 1: 6 /(CPU: 1 x Type-C on the back panel; Chipset:
- 1 x Type-C, available via internal USB connector, 2 ports on the back panel,
- 2 Port available via internal USB connector)
- USB 3.2 Gen 2: 1 /(CPU: Type-A (red) on back panel)
- Features
- CPU fan header
- system fan headers
- clear CMOS jumper
- iTE I/O Controller Chip
- Front panel audio connector
- RGB LED strip header
- Support for Windows 10 64-bit
- Q-Flash Plus button
- Smart Backup feature
- Q-Flash Utility
- Front Panel Header
- TPM Header
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan failure warning
- Fan speed control
- system fan/water cooling pump header
- Q-Flash Plus Utility
- Water cooling flow rate detection
- Support for Windows 11 64-bit
- Internet Security
- CPU water cooling fan/pump connector
- Main power connector: 24+8-pin
- Dimensions (Height x Width): 244 x 244 mm
