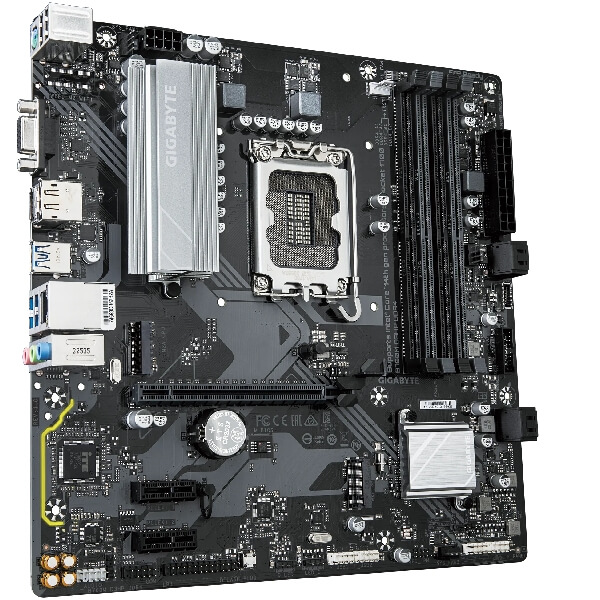

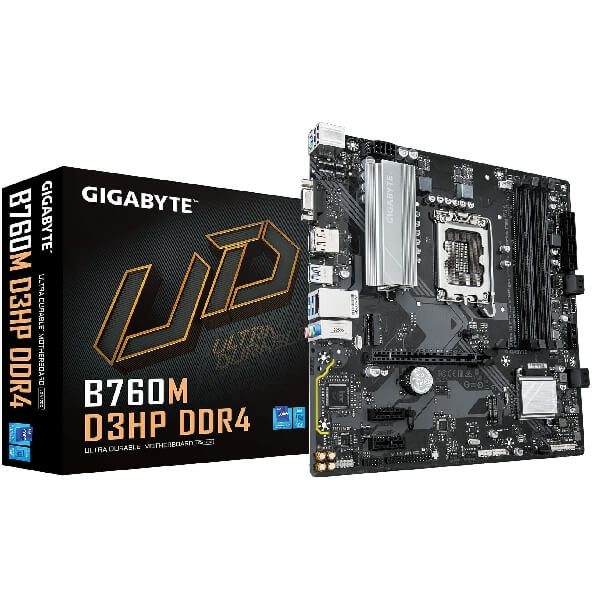

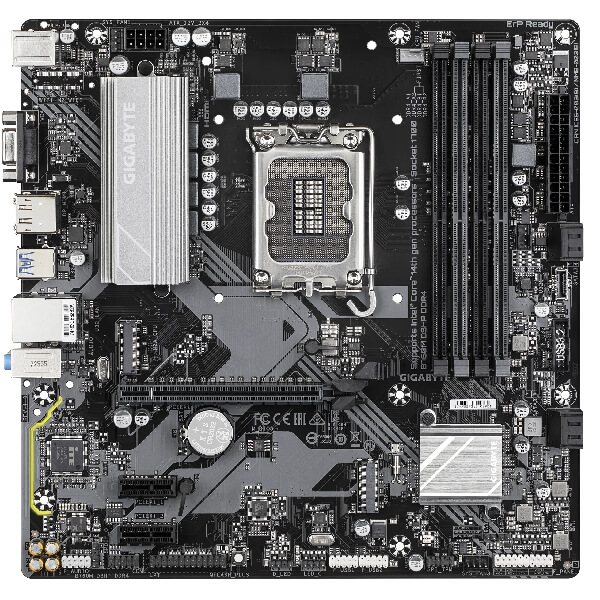

- Brand: Gigabyte
- Model: B760M_D3HP_DDR4
- Product Type: Motherboard
- Form Factor: Micro ATX Form Factor; 24.4 cm x 24.4 cm
- Processor: LGA1700 Socket: Supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors
- L3 cache varies by processor
- Chipset: Intel B760 Express chipset
- Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB per DIMM capacity) of system memory
- Audio: Realtek audio codec
- High-definition audio: 2/4/5.1/7.1-channel
- LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion slots
- Processor:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- Chipset:
- 2 x PCI Express x1 slots, Supports PCIe 3.0 and operates at x1
- USB
- Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, accessible via internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports accessible via internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 hub:
- 4 x USB 2.0/1.1 ports accessible via internal USB headers
- BIOS
- 1 x 128 Mbit flash memory
