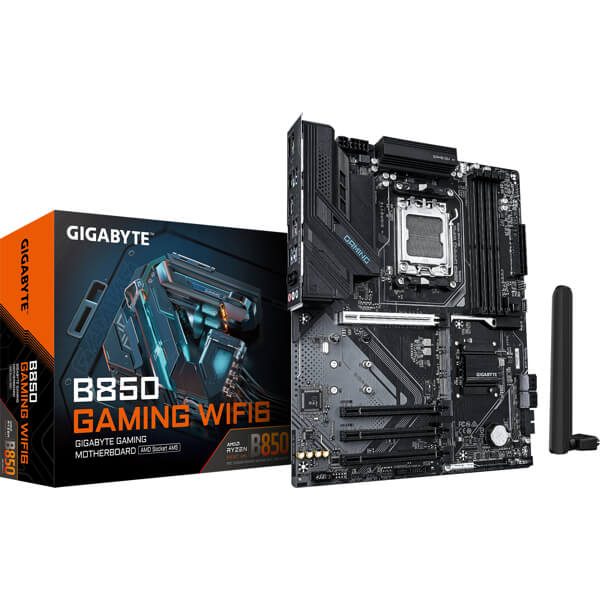

- Brand: Gigabyte
- Model: B850_GAMING_WF6
- Product Type: Motherboard
- Form Factor: ATX Form Factor; 30.5 cm x 24.4 cm
- Processor
- AMD Socket AM5, Support:
- AMD Ryzen 9000 Series Processors/
- AMD Ryzen 8000 Series Processors/
- AMD Ryzen 7000 Series Processors
- Chipset: AMD B850
- Memory
- Memory Modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM capacity) of system memory
- Dual-channel memory architecture
- On-board graphics
- Integrated graphics processor with AMD Radeon graphics support:
- 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
- Audio: Realtek audio codec
- High-definition audio: 2/4/5.1/7.1-channel
- LAN
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Wireless communication module
- Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency Bands
- BLUETOOTH 5.3
- 11ax 80MHz wireless support Standard

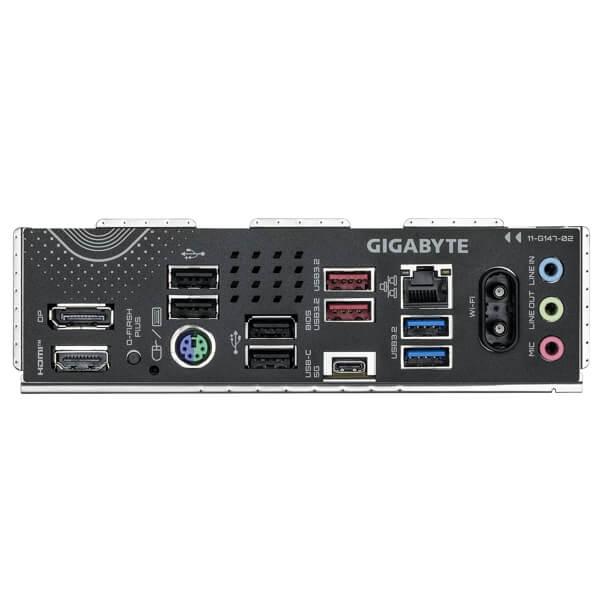

- USB
- Processor:
- 1 x USB Type-C port on the back panel, supporting USB 3.2 Gen 1
- 2 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, accessible via internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports accessible via internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 hub:
- 4 x USB 2.0/1.1 ports accessible via internal USB headers
- BIOS
- 1 x 256MB flash memory
- Using licensed AMI UEFI BIOS
