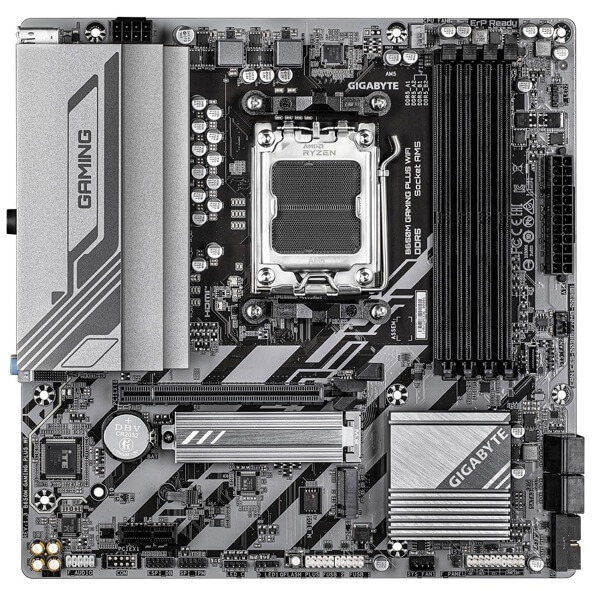

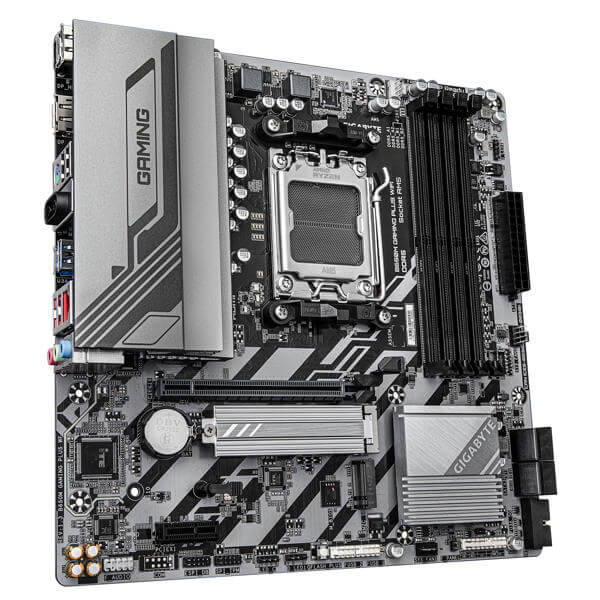

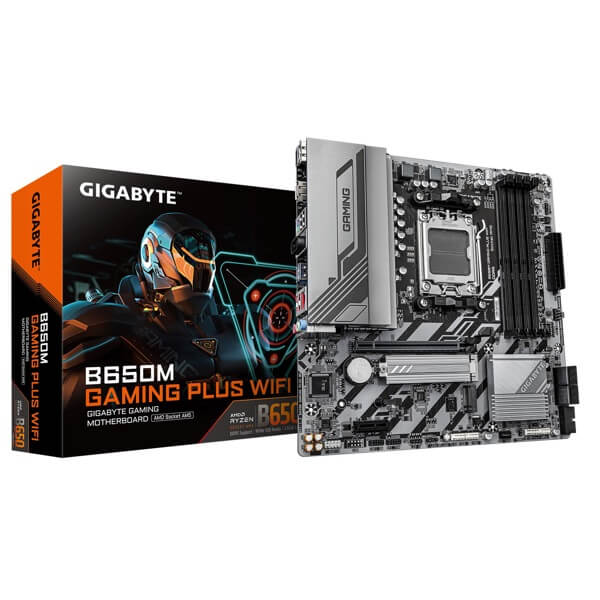

- Brand: Gigabyte
- Model: B650M_GAMING_PLUS_WF
- Product Type: Motherboard
- Form Factor: ATX
- Processor: For AMD Processors
- Socket Type: AM5
- Processor Compatibility: AMD Ryzen 9000/8000/7000
- Chipset
- Northbridge (Chipset): AMD B650
- BIOS: UEFI
- UEFI BIOS: Yes
- RAM
- Socket Type: DDR5
- DDR5: 4 Slots
- Maximum Clock Frequency: 8000 MHz
- Maximum Memory Capacity: 256 GB
- Video Settings
- Graphics Interface
- PCI-E x16 4.0
- HDMI Output
- DisplayPort
- Audio Settings
- Audio Chipset: Realtek
- Sound: 7.1, 5.1, 2, 4
- Drive Connections
- Connection Interface
- SATA 3
- M.2
- Software RAID: Yes, 0/1/10
- SATA3 (6 Gbit/s): 4 ports
- Network interfaces
- LAN (RJ-45): 100/1000/2500 Mbps
- Number of LAN ports: 1
- LAN controller model: Realtek
- Wi-Fi module: Yes, 6 RTL8851BE
- Bluetooth: Yes, 5.3

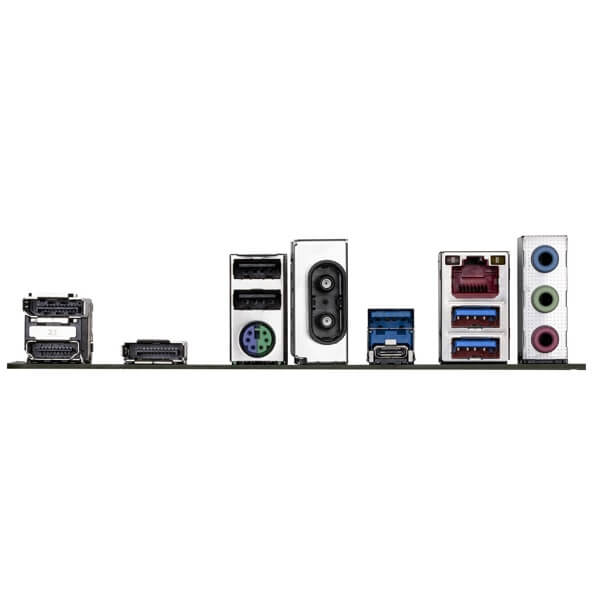

- Connection connectors
- USB 2.0: 6 pcs (CPU: 1 on the back panel; chipset: 1 on the back
- panel, 4 ports available via internal USB connectors)
- PS/2: 1 pc (keyboard/mouse)
- USB 3.2 Gen 1: 7
- M.2 connector: 2
- Features
- CPU fan header
- system fan headers
- clear CMOS jumper
- iTE I/O Controller Chip
- Front panel audio connector
- RGB LED strip header
- Support for Windows 10 64-bit
- Q-Flash Plus button
- Q-Flash Utility
- Front Panel Header
- Addressable LED Header
- TPM Header
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan failure warning
- Fan speed control
- Q-Flash Plus Utility
- Internet Security
- LAN bandwidth management software
- Support for Windows 11
- Main power connector: 24+8-pin
- Dimensions (Height x Width): 244 x 244 mm
