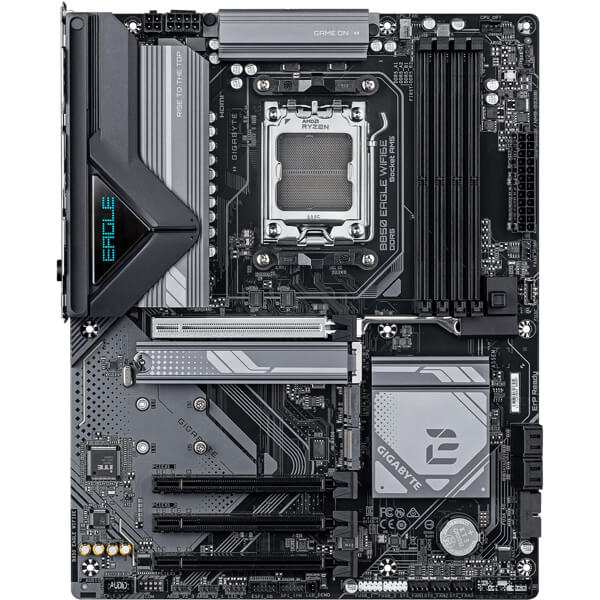

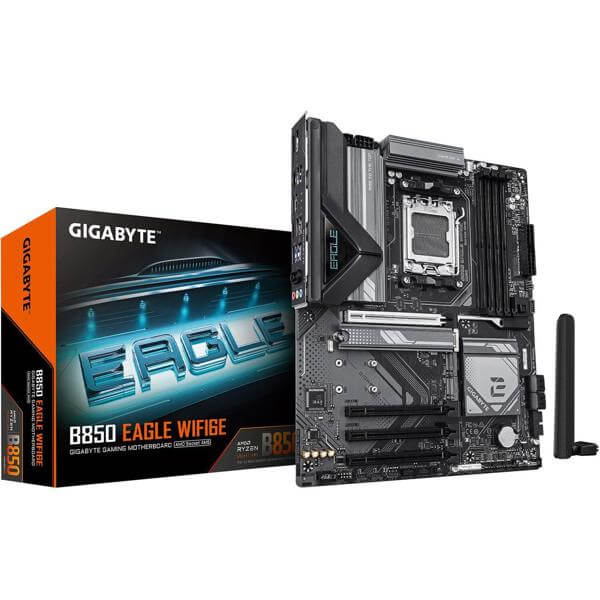

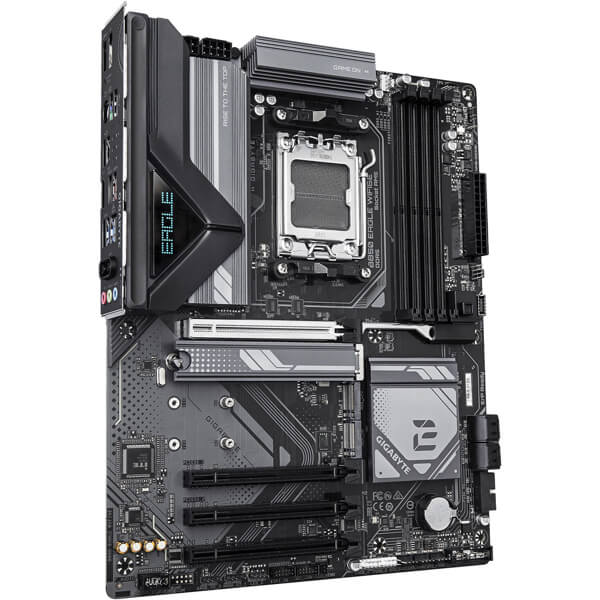

- Brand: Gigabyte
- Model: B850_EAGLE_WIFI6E
- Product Type: Motherboard
- Form Factor: ATX Form Factor; 30.5 cm x 24.4 cm
- Processor
- AMD Socket AM5, Support:
- AMD Ryzen 9000 Series Processors
- AMD Ryzen 8000 Series Processors
- AMD Ryzen 7000 Series Processors
- Chipset: AMD B850
- Memory
- Memory Modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM capacity) of system memory
- Dual-channel memory architecture
- On-board graphics
- Integrated graphics processor with AMD Radeon graphics support:
- 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
- Audio
- Realtek audio codec
- High-definition audio: 2/4/5.1/7.1-channel
- LAN
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Wireless communication module
- Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support 11ax 160MHz wireless standard
- Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support 11ax 160MHz wireless standard

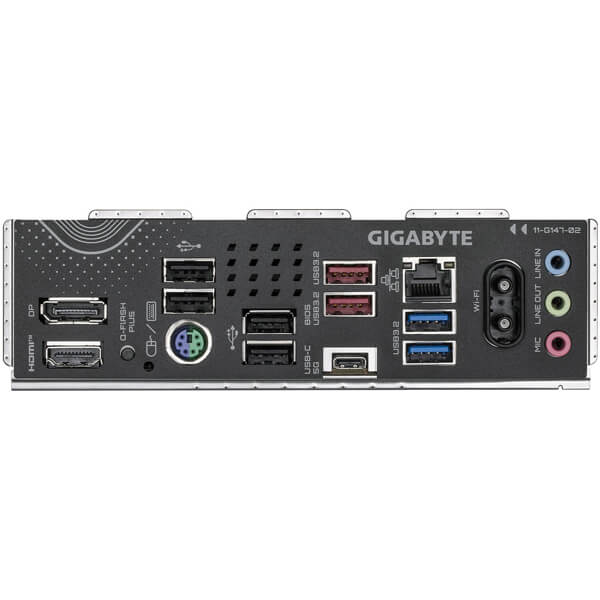

- USB
- CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, accessible via internal USB header
- 4 x USB 3.2 Gen 1 port (2 port on the back panel, 2 ports available via internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available via internal USB headers
- BIOS
- 1 x 256 Mbit flash memory
- Using licensed AMI UEFI BIOS
