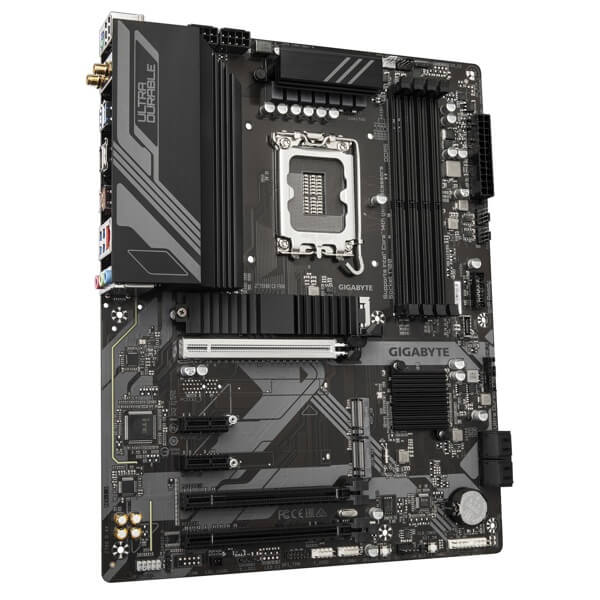

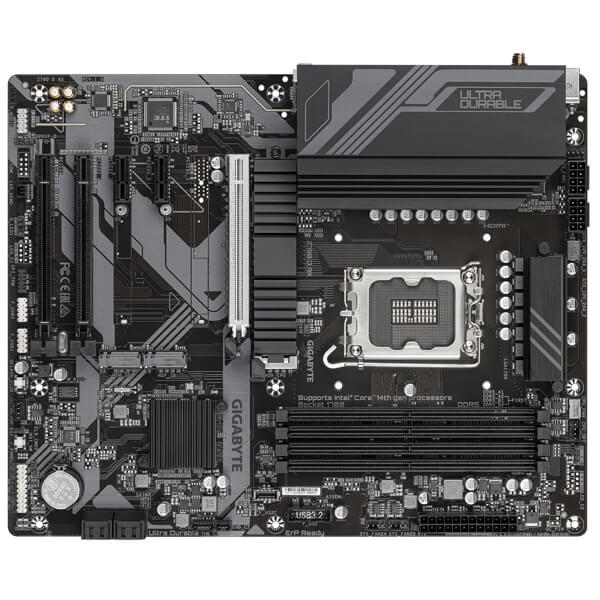

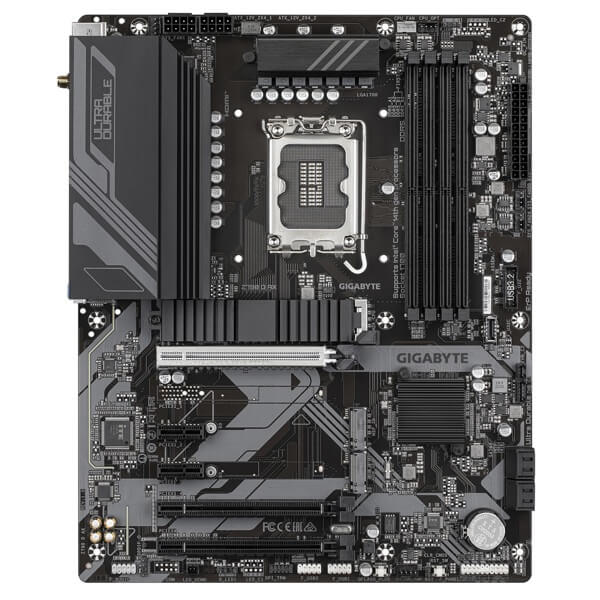

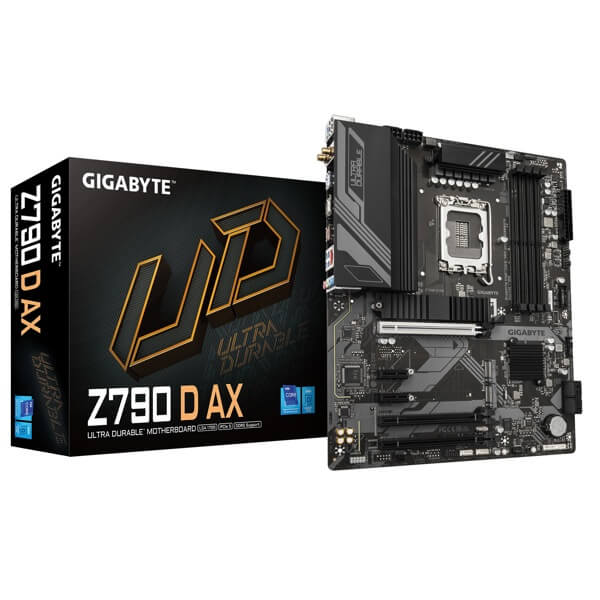

- Brand: Gigabyte
- Model: Z790_D_AX
- Product Type: Motherboard
- Form Factor: ATX
- Processor: For Intel processors
- Socket Type: LGA1700
- Processor Compatibility
- Intel Celeron
- Intel Core 13th Generation
- Intel Core 12th Generation
- Intel Core 14th Generation
- Intel Pentium Gold
- Chipset
- Northbridge (Chipset): Intel Z790
- BIOS: UEFI
- UEFI BIOS: Yes
- RAM
- Connection Type: DDR5
- DDR5: 4 Slots
- Maximum Clock Frequency: 7600 MHz
- Maximum Memory Capacity: 256 GB
- Video Settings
- Graphics Interface
- PCI-E x16 5.0
- HDMI Output=
- DisplayPort
- Audio Settings
- Audio Chipset: Realtek
- Sound: 7.1, 5.1, 2, 4
- Drive Connections
- Connection Interface
- SATA 2
- M.2
- SATA 2 (3 Gbit/s): 4 ports
- Software RAID support: Yes
- Network interfaces
- LAN (RJ-45): 100/1000/2500 Mbps
- Number of LAN ports: 1
- LAN controller model: Realtek
- Wi-Fi: Yes, 6E AX211
- Bluetooth: Yes, 5.3

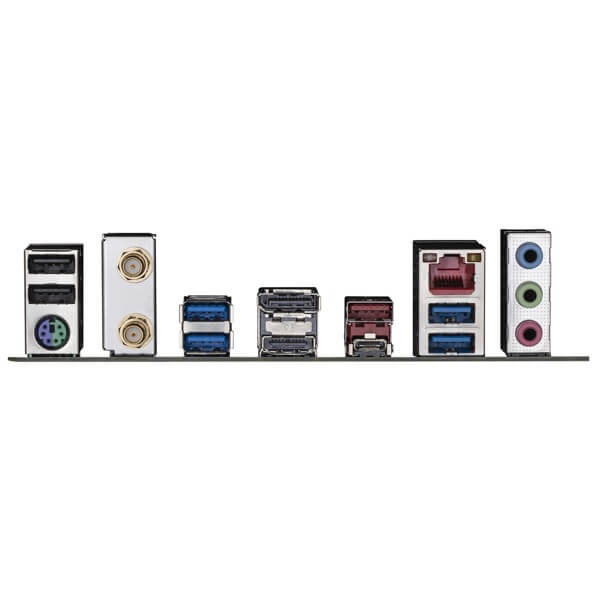

- Connection connectors
- USB 2.0: 6 pcs (chipset: 2 on the back panel; chipset+USB 2.0 hub: 4 ports, accessed via internal ISB connector)
- PS/2: 1 pc (keyboard/mouse)
- USB 3.2 Gen 1: 7 /(chipset: 1xType-C, accessed via internal connector,
- 4 ports on the back panel, 2 ports accessible via internal USB connector)
- USB 3.2 Gen 2: 2 /(Chipset: 1xType-C on back panel, 1xType-A (red) on back panel)
- M.2 Connector: 3
- Features
- Thunderbolt™ AIC Connector
- system fan headers
- clear CMOS jumper
- iTE I/O Controller Chip
- reset button
- Support for Windows 10 64-bit
- Q-Flash Plus button
- Smart Backup feature
- Q-Flash Utility
- TPM Header
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan failure warning
- Fan speed control
- system fan/water cooling pump header
- Q-Flash Plus Utility
- Water cooling flow rate detection
- Support for Windows 11 64-bit
- Internet Security
- LAN bandwidth management software
- Main power connector: 24-pin
- Processor power: +8 /x2
- Dimensions (Height x Width): 305 x 244 mm
