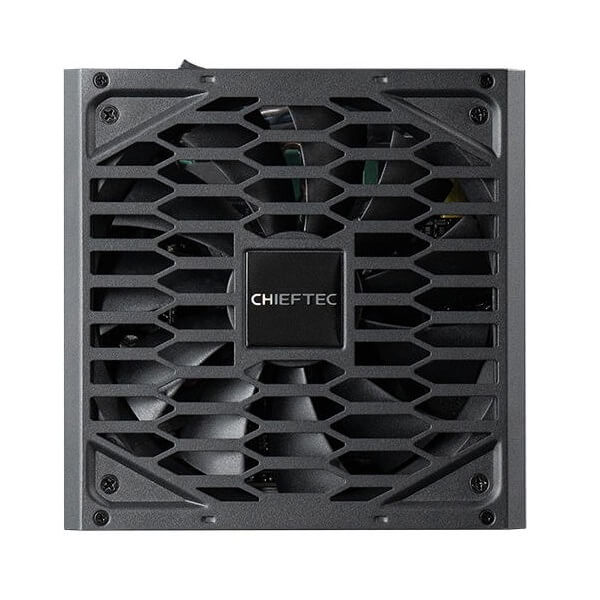

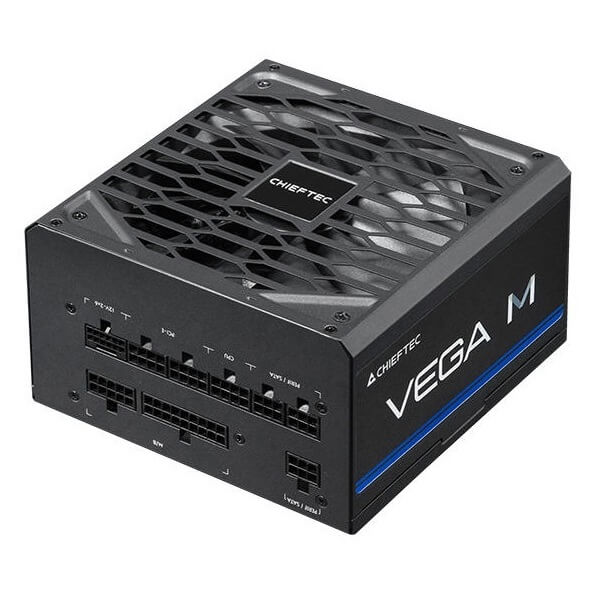

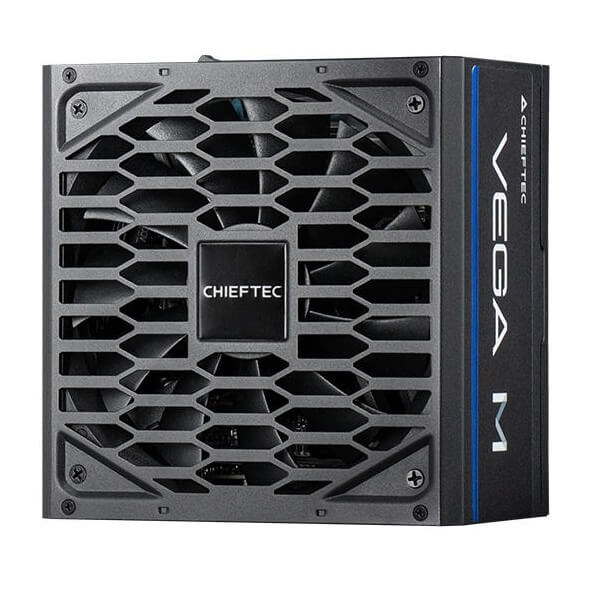

- Brand: Chieftec
- Model: PPG-1000-C
- Product Type: Power Supply
- Power: 1000 W
- Features
- PFC Type: Active /(0.9)
- Number of Fans: 1
- Fan Diameter: 135 mm
- ATX 12V Standard: 3.1
- Efficiency: 90%
- 80 PLUS Certificate: Gold
- Frequency: 50-60 Hz
- Maximum Load
- +3.3V - 20A
- +5V - 20A
- +5V & +3.3V Combined 100W
- +12V1 - 83.33A
- -12V - 0.3A/3.6W
- +5VSB - 3.0A/15W
- Combined Load +12V1, +12V2 1000W
- Power Connectors
- SATA: 6 pcs
- PCI-E 8 pin: 4 pcs (6+2)
- 8 pin EPS (4+4): 1 pc / 1
- Molex (IDE): 3 pcs
- Connectors
- 3 x Molex
- 6 x SATA
- 1 x 20+4 PIN ATX
- 4 x 8 PIN PCIe (6+2)
- 8 PIN EPS (4+4)
- 16 PIN 12V - 2 x 6
- Cable length
- SATA 450 mm / 150 mm / 150 mm x 2
- MOLEX 400 mm / 150 mm / 150 mm
- PCI-E 600 mm 8 PIN (6+2)
- Additional
- Security
- OTP (Overheat Protection)
- AFC (Automatic Fan Speed Control)
- OPP (Overload Protection)
- OVP (Overvoltage Protection)
- SCP (Short Circuit Protection)
- SIP (Surge and Surge Protection) Surge Protection)
- UVP (Undervoltage Protection)
- OCP (Overcurrent Protection)
- Dimensions (Height x Width x Depth): 85 x 150 x 150 mm
- Weight: 2.3 kg
- Color: Black
| Power | 1000W |
| 80 PLUS efficiency | Gold |
| Color | Black |
