- Brand: MSI
- Model: 911-7D75-013
- Product Type: Motherboard
- Form Factor: ATX (305 × 244 mm)
- Socket: AMD AM5
- Chipset: AMD B650
- Compatible Processors:
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series (depending on BIOS update)
- RAM
- Slots: 4 × DDR5 DIMM
- Maximum Capacity: 192 GB
- Memory Mode: Dual Channel
- Frequency: DDR5 OC Support (Approx. 6600+ MHz, depending on module and CPU)
- Expansion Slots
- 1 × PCIe 4.0 x16 (for graphics card)
- 1 × PCIe 4.0 x4
- 1 × PCIe 3.0 x1
- Storage
- M.2 Slots: 3 × M.2 NVMe
- PCIe 4.0 x4 support
- SATA: 6 × SATA 6 Gb/s
- RAID support:
- RAID 0
- RAID 1
- RAID 10
- Network and connectivity
- LAN: Realtek 2.5Gb Ethernet
- Wi-Fi: Wi-Fi 6E
- Bluetooth: 5.3
- Audio
- Codec: Realtek ALC4080
- 7.1-channel HD Audio
- High-quality audio capacitors

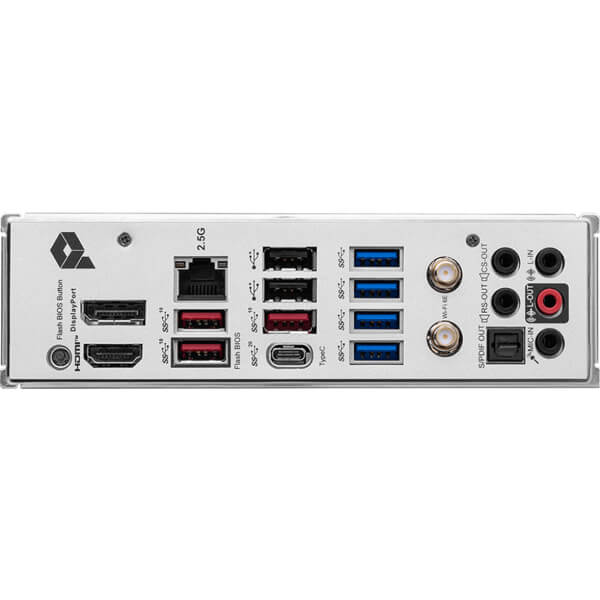

- Rear ports
- 1 × USB 3.2 Gen2x2 Type-C (20 Gbps)
- USB 3.2 Gen2 Type-A
- USB 3.2 Gen1
- HDMI 2.1
- DisplayPort 1.4
- 2.5G LAN
- Wi-Fi antenna connectors
- Audio jacks
- Optical S/PDIF
- Power system
- 24-pin ATX main power
- 2 × 8-pin CPU EPS
- VRM: 14+2+1 Duet Rail Power System
- Large VRM heatsinks
- Additional features
- Flash BIOS Button
- EZ Debug LED
- M.2 Shield Frozr Cooling
- Steel Armor PCIe Slot
- Core Boost
- Memory Boost
- Mystic Light RGB Support
- Size: 305 × 244 mm
- Weight: Approx. 1.5 kg
