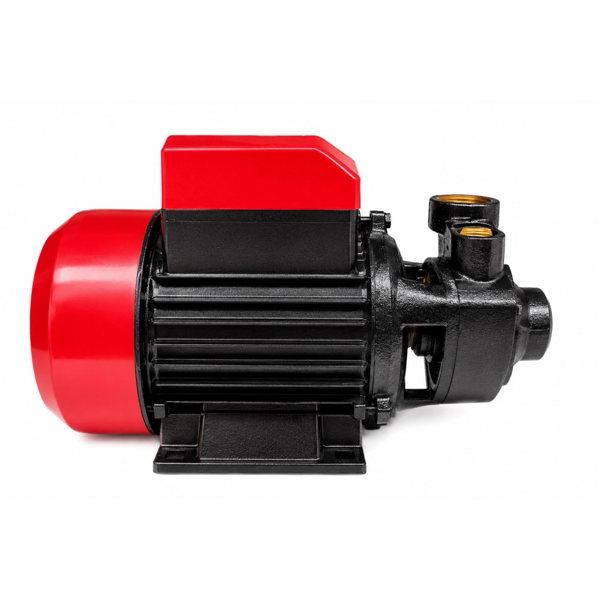

Water pump Edon ED/QB-70 EU

EDON QB-70 is an electric water pump designed for pumping and supplying water in household, agricultural and yard work. The model is used in cases where a stable supply of water is required in the corresponding system. The pump operates on a voltage of 220V and has a power of 0.55kW, which corresponds to 0.75HP. The maximum performance is 45 l/min, and the maximum lifting height is 40 m, which is practical for pumping, supplying and irrigation work. The model has a rotation speed of 2850 rpm, a current of 4.2A and a frequency of 50/60Hz. The IP44 protection class protects the device from solid particles and water splashes under appropriate conditions. Thermal protection helps protect the motor from overheating. EDON QB-70 is suitable for home, country house, garden, yard and small agricultural work. Before use, it is necessary to familiarize yourself with the instructions and follow the installation rules.

Technical characteristics:

• Manufacturer: Edon

• Model: ED/QB-70

• Maximum lifting height: 40 m

• Maximum capacity: 45 l/min

• Voltage: 220V

• Frequency: 50/60Hz

• Rotational speed: 2850 rpm

• Power: 0.55 kW (0.75 HP)

• Current: 4.2A

• Capacitor: 12 uF

• Capacitor voltage: 450V

• Insulation class: ICL F

• Protection class: IP44

• Operating mode: Continuous Duty

• Protection: Thermal protection
