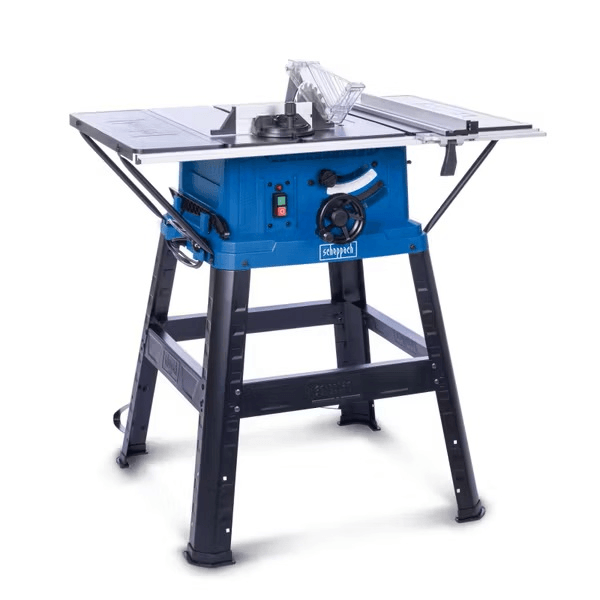

Circular saw with table Scheppach HS 254 2200 W 254 mm

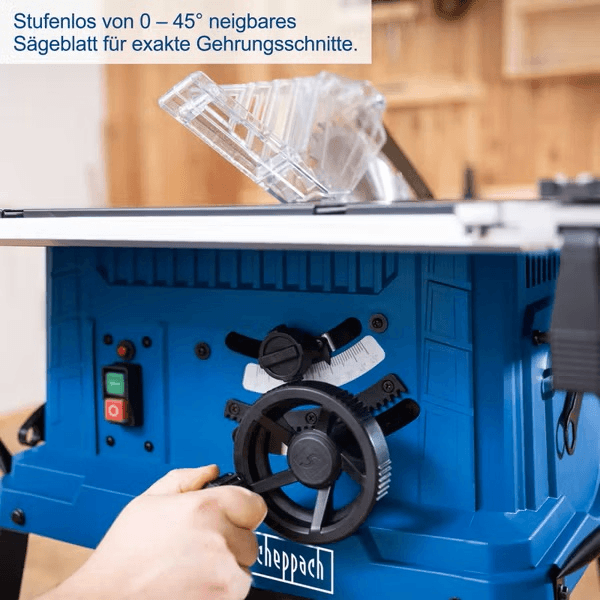

The Scheppach HS254 is a table circular saw designed for precise cutting of wooden beams, profiled boards and other wooden materials. The device is used for both longitudinal and transverse cuts, as well as for angular cuts. The solid steel support structure ensures stable positioning of the tool and a convenient working height. The 2200 W motor and 254 mm diameter disc develop a speed of 5300 rpm. The maximum cutting depth at an angle of 90 ° is 85 mm, and at a 45 ° angle - 63 mm. The angle of inclination of the disc is continuously adjustable from 0 ° to 45 °, which makes it easier to perform precise angular cuts. Table extensions located on both sides facilitate the processing of large workpieces. The longitudinal stop, integrated measuring scale and cross-directional guide adjustable from -60° to +60° increase cutting accuracy. The soft start function reduces the initial load on the motor and the electrical network, and overload protection contributes to the safe operation of the device. The saw has an integrated nozzle for connecting to a dust extraction system, a protective cover for the blade and a push rod for feeding the workpiece.
Technical specifications:
• Manufacturer: Scheppach
• Model: HS254
• Power: 2200 W
• Continuous power S1: 2000 W
• Voltage: 220-240 V
• Frequency: 50 Hz
• Rotational speed: 5300-7000 rpm
• Motor type: Carbon
• Power supply type: Mains

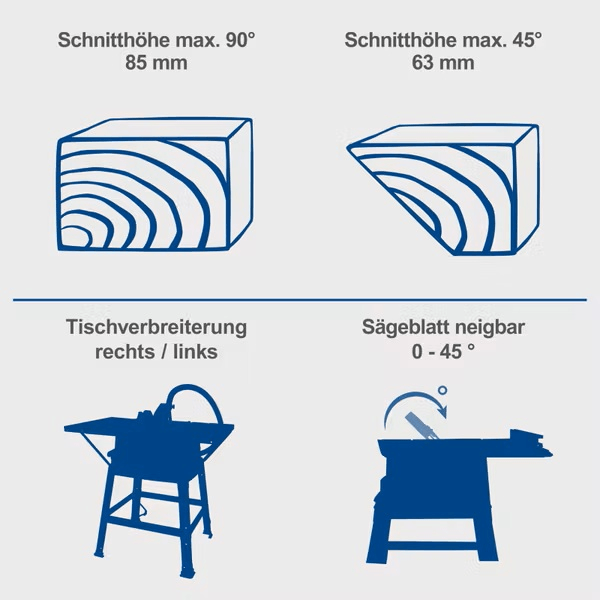

• Maximum cutting depth at 90°: 85 mm
• Maximum cutting depth at 45°: 63 mm
• Blade tilt range: 0-45°
• Cross-direction template adjustment: -60° to +60°
• Blade height adjustment: 0-85 mm
• Height adjustment mechanism: Handwheel
• Soft start: Yes
• Overload protection: Yes
• Thermal protection: Yes
• Protection class: II
• Electrical protection class: IPX0
• Disc stop time: 10 sec
• Connection to dust extraction system: Yes
Complete set:
• 24-tooth circular disc: 254 mm
• Disc protective cover
• Parallel guide
• 2 table expanders
• Cross direction template
• Push rod
• Support structure
• Mounting elements
• 2 ring spanners
• Instructions for use
Physical parameters:

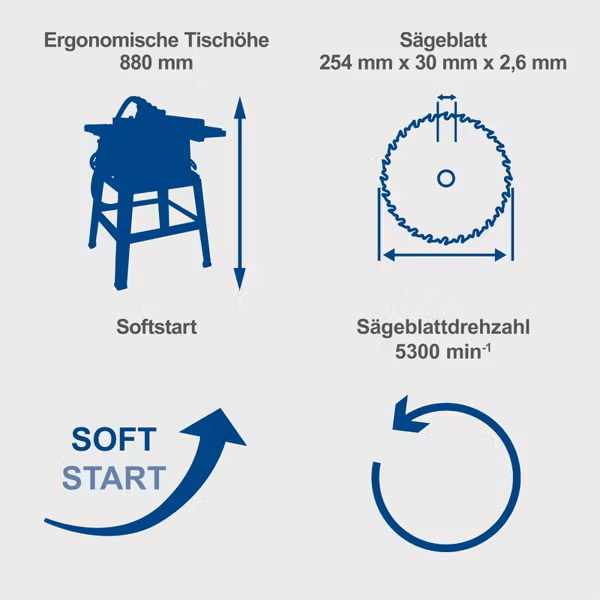

• Disc diameter: 254 mm
• Disc hole diameter: 30 mm
• Number of disc teeth: 24
• Disc thickness: 1.6 mm
• Cutting width: 2.6 mm
• Worktable size: 630x545 mm
• Each expander size: 630x195 mm
• Overall size: 940x935x1020 mm
• Worktable Material: sheet metal
• Base material: sheet steel
• Color: blue, black, silver

* The manufacturer reserves the right to make changes to the product characteristics, color, configuration and design without notice. The store is not responsible for changes made by the manufacturer. Circular saw with a table Scheppach HS 254 2200 W 254 mm
The Scheppach HS254 is a table circular saw designed for precise cutting of wooden beams, profiled boards and other wooden materials. The device is used for both longitudinal and transverse, as well as angular cuts. The solid steel support structure ensures stable placement of the tool and a convenient working height. The 2200 W motor and 254 mm diameter disc develop a speed of 5300 rpm. The maximum cutting depth at a 90° angle is 85 mm, and at a 45° angle - 63 mm. The blade tilt angle is continuously adjustable from 0° to 45°, which makes it easy to make precise angled cuts. Table extensions on both sides facilitate the processing of large workpieces. The longitudinal support, integrated measuring scale and a cross-directional template adjustable from -60° to +60° increase the accuracy of the cut. The soft start function reduces the initial load on the motor and the electrical network, and overload protection contributes to the safe operation of the device. The saw has an integrated nozzle for connecting to a dust extraction system, a blade guard and a push rod for feeding the workpiece.
Technical specifications:
• Manufacturer: Scheppach
• Model: HS254
• Power: 2200 W
• Continuous power S1: 2000 W
• Voltage: 220-240 V
• Frequency: 50 Hz
• Rotational speed: 5300-7000 rpm
• Motor type: Carbon
• Power supply type: Mains
• Maximum cutting depth at 90°: 85 mm
• Maximum cutting depth at 45°: 63 mm
• Blade tilt range: 0-45°
• Cross-direction template adjustment: -60° to +60°
• Blade height adjustment: 0-85 mm
• Height adjustment mechanism: Handwheel
• Soft start: Yes
• Overload protection: Yes
• Thermal protection: Yes
• Protection class: II
• Electrical protection class: IPX0
• Disc stop time: 10 sec
• Connection to dust extraction system: Yes
Complete set:
• 24-tooth circular disc: 254 mm
• Disc protective cover
• Parallel guide
• 2 table extensions
• Cross direction template
• Push rod
• Support structure
• Mounting elements
• 2 ring spanners
• Instructions for use
Physical parameters:
• Disc diameter: 254 mm
• Disc hole diameter: 30 mm
•
