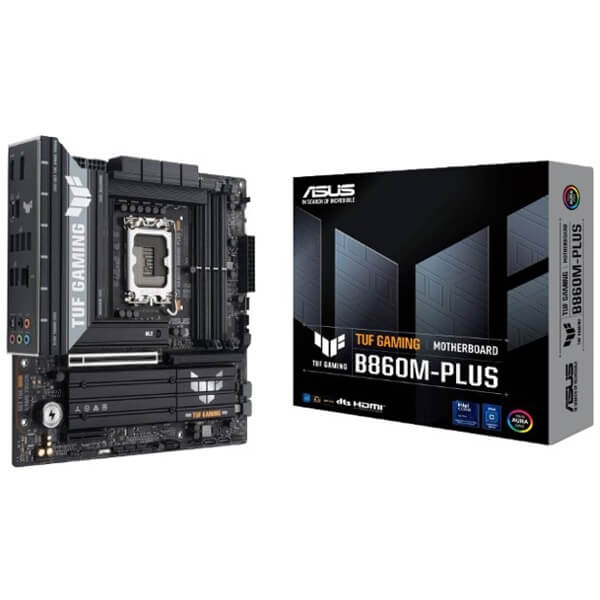

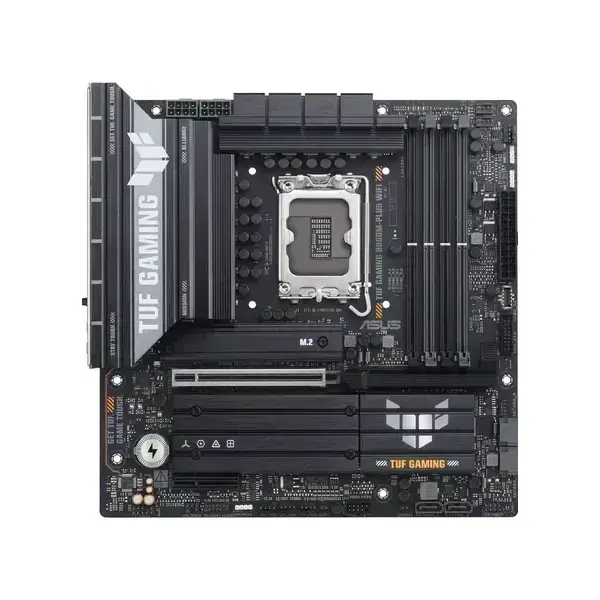

- Brand: ASUS
- Model: 90MB1JW0-M0EAY0
- Product Type: Motherboard
- Form Factor: mATX
- Socket: 1851
- Chipset: Intel B860
- Compatible Processors Support Intel Core Ultra Processors (Series 2), LGA1851
- Maximum Memory: 256GB
- RAM Type: DDR5
- Maximum Frequency: 8800 MHz
- Number of Slots: 4
- Slot Type: DIMM
- Expansion Slots:
- 1 x PCIe 4.0 x4 slot, 1 x PCIe 5.0 x16 slot
- PCI Express Version PCI Express 4.0, PCI Express 5.0
- Internal I/O Ports
- 1 x USB 10Gbps connector (supports USB Type-C), 1 x 4-pin CPU OPT Fan header
- 1 x Clear CMOS header, 1 x Thunderbolt (USB4) Header, 1 x 24-pin Main Power connector, 4 x SATA 6Gb/s ports
- 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x chassis intrusion header, 2 x 8-pin +12V Power connectors
- 1 x 4-pin CPU Fan header(s), 3 x M.2 slots (Key M), 3 x Addressable Gen 2 headers
- Internal I/O ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

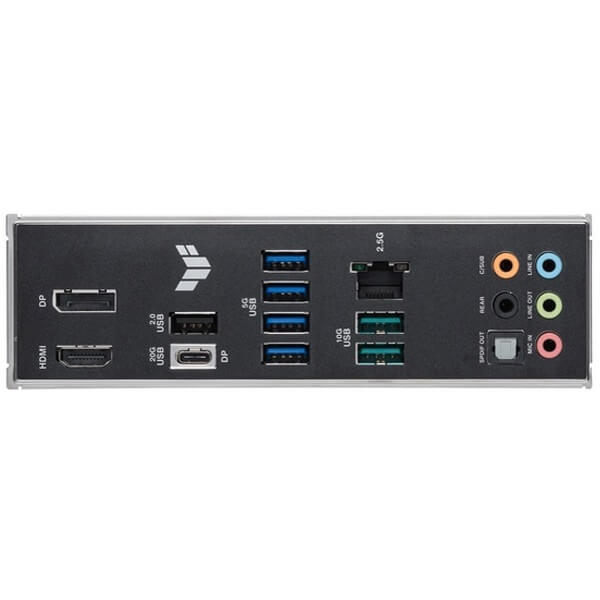

- Rear I/O ports
- 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode), 5 x Audio jacks, 1 x Optical S/PDIF out port
- 1 x HDMI, 2 x USB 10Gbps port (2 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x DisplayPort
- 1 x Realtek 2.5Gb Ethernet port, 1 x USB 2.0 port (1 x Type-A)
- Operating system: Windows 10 64-bit, Windows 11
- Size: 24.4 x 24.4 cm
