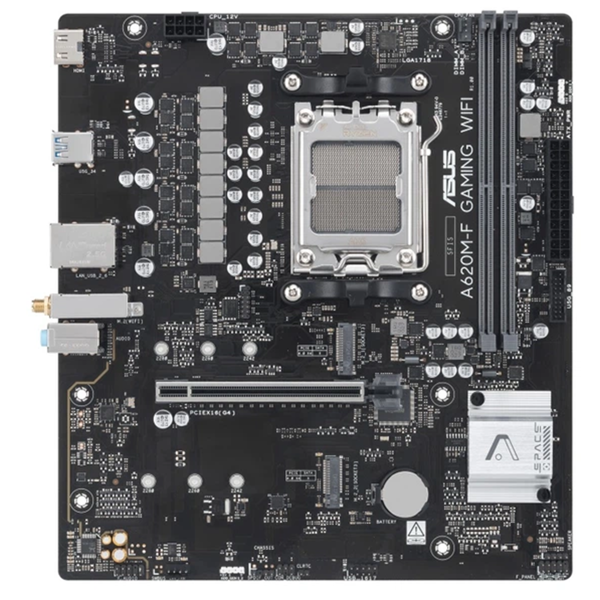

- Brand: Asus
- Model: 90MB1KT0-M0EAY0
- Product Type: Motherboard
- Form Factor: Micro-ATX
- Socket: AMD AM5
- Chipset: AMD A620
- Processors: Ryzen 7000 / 8000 / 9000
- RAM: DDR5
- RAM Slots: 2 × DIMM
- Max. RAM: 128 GB
- Max. RAM Frequency: Up to 8000 MT/s (OC)
- RAM Architecture: Dual Channel
- M.2 2 × M.2
- PCIe x16: 1 × PCIe 4.0 x16
- LAN: Realtek 2.5Gb Ethernet
- Wi-Fi: Wi-Fi 6
- Bluetooth: 5.3
- Audio: Realtek 7.1-channel HD Audio
- Video Output: 1 × HDMI
- BIOS: UEFI AMI, 256 Mbit
- Expansion Capabilities
- 1 × PCIe 4.0 x16 — for video card.
- 2 × M.2 — for NVMe SSDs.
- There are no SATA ports on this model, so the use of 2.5"/3.5" SATA drives is not provided
- Rear panel
- 2 × USB 3.2 Gen 1 Type-A
- 2 × USB 2.0 Type-A
- 1 × HDMI
- 1 × 2.5Gb Ethernet
- Wi-Fi antenna connectors
- 3 × Audio jack
- Internal connectors
- 24-pin ATX Power
- 8-pin CPU/EPS Power
- 1 × CPU Fan
- 1 × Chassis Fan
- 2 × M.2
- 1 × USB 3.2 Gen 1 header
- 1 × USB 2.0 header
- 2 × Addressable Gen 2 RGB header
- S/PDIF header
- Front Audio
- Clear CMOS
- System Panel header
- Dimensions: 24.4 × 22.1 cm
