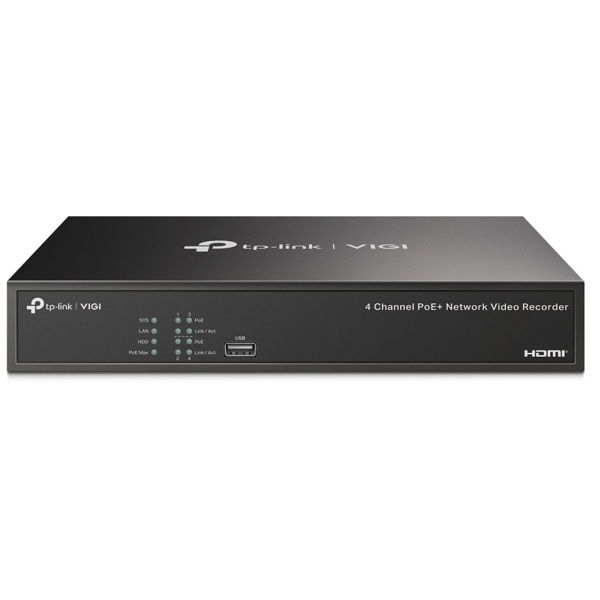

- Brand: TP-LINK
- Model: VIGI NVR1004H-4P
- Product Type: Network Video Recorder
- IP Camera Channels: 4
- Incoming Bandwidth: 80 Mbps
- Outgoing Bandwidth: 60 Mbps
- Maximum HDD Capacity: 10 TB
- HDD Interface: 1 × SATA
- HDD Included: No
- Video Compression: H.265+, H.265, H.264+, H.264
- Audio Compression: G.711A, G.711U, G.726
- HDMI Output: 4K, 3840 × 2160 @ 30 Hz
- VGA Output: Max. 1920 × 1080 @ 60 Hz
- Simultaneous playback: 4 channels (subject to decoding capabilities)
- Interfaces and Ports
- RJ-45 PoE+
- 4 × 10/100 Mbps
- RJ-45 LAN
- 1 × 10/100 Mbps
- HDMI
- 1 × HDMI, 4K output
- VGA
- 1 × VGA
- USB
- 2 × USB 2.0
- SATA
- 1 × for HDD
- RCA Audio In
- 1 × audio input
- RCA Audio Out
- 1 × audio output
- Power Port
- DC Jack
- PoE+ Power Capabilities
- PoE Standard: IEEE 802.3af / 802.3at
- Number of PoE ports: 4
- Total PoE budget: 53 W
- Maximum power per port: 30 W
- Video Recording and Decoding
- Maximum camera resolution: Up to 8 MP
- 25 fps decoding: 2 channels at 8 MP or 4 channels at 4 MP
- 30 fps decoding: 4 channels at 4 MP or 3 channels at 5 MP
- Simultaneous display: 1 or 4 windows
- Dimensions (Width × Depth × Height): 246.2 × 148.2 × 45 mm
- Color: Black
| Type | IP Video Recorder |
| Color | Black |
| Works with the app | No |
