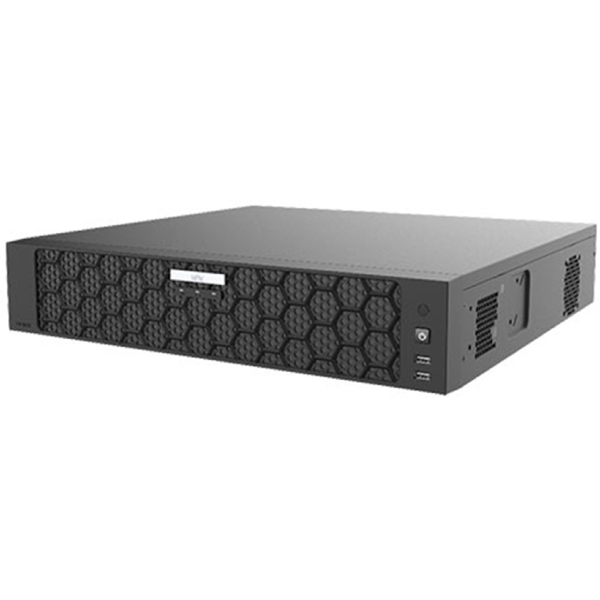

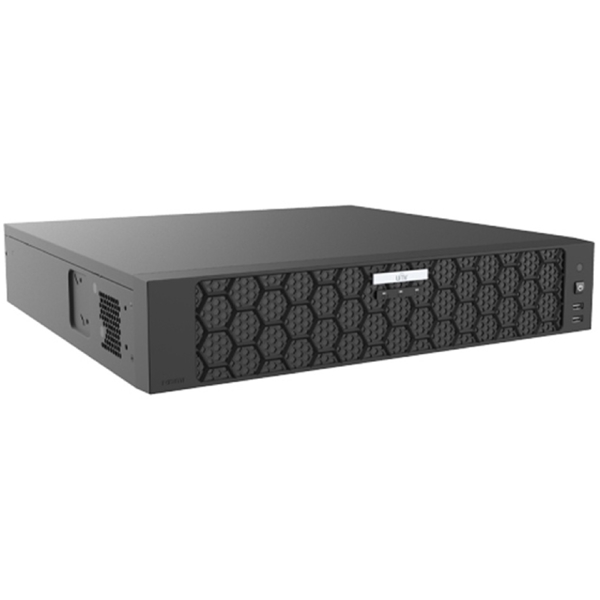

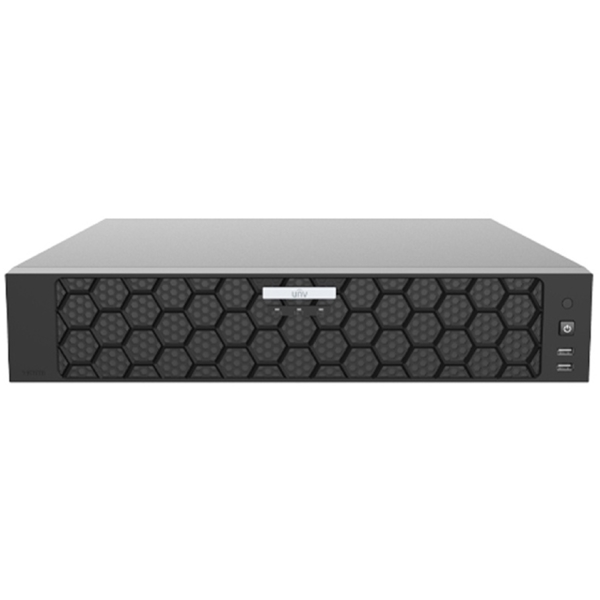

- Brand: Uniview
- Model: NVR508-32B
- Product Type: Network Video Recorder
- Audio Compression: G.711A, G.711U
- Input Bandwidth: 320 Mbps
- Output Bandwidth: 160 Mbps
- Remote Users: 128
- Protocols
- TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP;
- RTSP; 802.1x; IPV6
- Video/Audio Description
- IP Video Input
- NVR508-16B:16-channel
- NVR508-32B:32-channel
- NVR508-64B:64-channel
- RCA Audio Input 1-channel
- Video/Audio Output Description
- HDMI Output HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz,
- 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
- 1280x720/60Hz, 1024x768/60Hz
- RCA Audio Output 1-Channel
- Liveview Display
- NVR508-16B: 1/4/6/8/9/16
- NVR508-32B: 1/4/6/8/9/16/25/36
- NVR508-64B: Simultaneous Output:
- VGA: 1/4/6/8/9/16/25/36/64,HDMI: 1/4/6/8/9/16/25/36/64,
- Independent Output:
- VGA:1/4/6/8/9/16/25/32,HDMI: 1/4/6/8/9/16/25/32
- Corridor Mode Screen
- NVR508-16B:3/4/5/7/9/10/12/16
- NVR508-32B/NVR508-64B:3/4/5/7/9/10/12/16/32
- Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
- Network Interface 2 RJ45 10M/100M/1000M Self-adaptive Ethernet Interface
- USB Front Panel:
- 2 x USB2.0; Rear panel: 1 x USB3.0
- RS485 1
- Signal output 4-channel
- Power supply: AC 100 ~ 240 V
- Operating temperature: -10 °C ~ 55 °C (14 °F ~ 131 °F)
- Operating humidity: ≤ 90% RH (non-condensing)
- Weight: ≤ 5.5 kg
- Dimensions 442 mm × 426 mm × 89 mm
- Color: Black
