- Brand: Gigabyte
- Model: A520M_K_V2
- Product Type: Motherboard
- Form Factor: Micro-ATX
- CPU
- Processor Socket Type: AMD Socket AM4
- Number of Processor Sockets: 1
- Chipset: AMD A520
- RAM Type: DDR4
- Number of RAM Slots: 2
- Number of RAM Channels: 2-Channel
- Maximum Memory Capacity: 64 GB
- Expansion Slots
- PCI-E x16 Slot (x16), pcs. 1 x PCI-E x16 (x16) v3.x
- PCI-E x1 slot, pcs
- 1 x PCI-E x1 v3.x

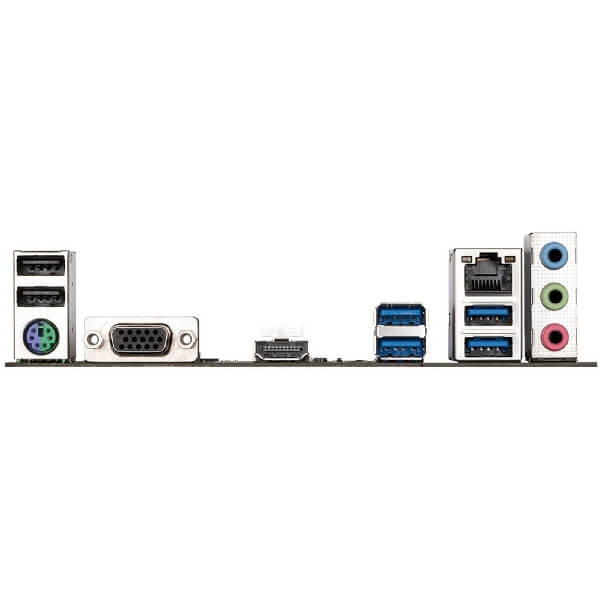

- Ports
- 1 x USB 3.2 Gen 1 Type-A
- 4 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0 Type-A, 2 x USB 2.0 Type-A
- 1 x VGA
- 1 x HDMI
- PS/2 port: 1
- TPM module connector: 1 (onboard)
- Storage device ports
- SATA3 ports (6 Gbps): 4
- 1 x M.2 (Key M)
- Software RAID support:
- RAID 0, RAID 1, RAID 10
- Network connection (LAN RJ-45 number): 1
- LAN connection, Mbps: 10/100/1000 Ethernet
- LAN controller model: Realtek GbE
- Built-in sound processor: Realtek HD Audio
- Multichannel Audio: 7.1
- 3.5 mm connector (mini-jack): 3
- Software / Management
- BIOS: AMI UEFI
- Power Supply
- Motherboard Power Connectors
- 1 x 24-pin
- Processor Power Connectors
- 1 x 8-pin
